Troubles and solutions of window patching machine

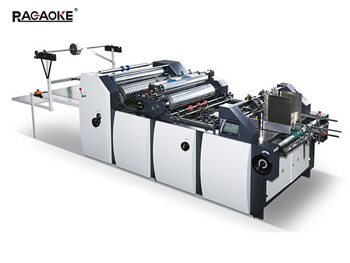

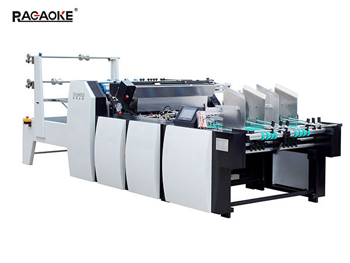

With the rapid development of science and technology, many manual industries have been replaced by machines. In the window patching machine industry, automatic window patching machines have emerged to replace labor. This machine can not only quickly complete the filming work, but also self- adhesively cut the film., Receiving paper and other functions.
But for machines, failure is the biggest problem. If it can't be solved in time, it will cause subsequent production problems. So today we solved several common problems based on customer feedback.

1. Membrane feeding is not in place.

     (1) The sensor light probe is back
     (2) The motor speed is too low: replace the motor of a suitable machine through the manual
     (3) The probe is too low

2. No output

     (1) The feeding motor is faulty or the timing belt is damaged: replace the feeding motor and the timing belt
     (2) The motor can not be pulled by the barrel with too much friction: reduce the barrel friction, or replace the motor.
     (3) The material is sensed by the optical fiber of the loading table: check the loading table and remove the residue at the sensor

3. Dislocation of membrane material

     (1) The machine suction head is too high
     (2) Abnormal plastic surgery
     (3) Inclined installation of material ring
     (4) Membrane material has strong electrostatic adsorption

4. Diaphragm crushing

     (1) The machine tip is too low
     (2) Turntable fixture is too high
     (3) The unwinding tray is too high
     (4) The adjustment of the plastic base is too high
     (5) The distance of the fixture is not well debugged

5. Induction failure of displacement cylinder

     (1) Generally, it is caused by the loosening of the fixing screws after long-term operation.

Many of the above problems are caused by insufficient preparation before starting up. These problems can only be solved by preparation and debugging before starting up. When replacing some parts, please turn off the power before proceeding. If it is a circuit problem, please cut off the power immediately and ask a professional to repair it.
In addition, we welcome you to submit some of your solutions to machine problems, which can allow us to grow together.
