XY800 Corner cutting Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box.gift box.napkin box.cosmetic box etc.It can also realize the function of the paper gluing,film patching,film cutting and paper collection before folding boxes.
The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
The optional structure: Window with intermittent slit
| MODEL | XY800 | |
| Cardboard | G/㎡ | 200-800g |
| Corrugated paper | mm | ≤7mm |
| Max.Working Speed | PCS/H | Corner cutting 5000 |
| Normal cutting 6000 | ||
| Size of cardboard | MM | 140x140-800x650mm |
| INCH | 5.51x5.51-31.49x25.59 | |
| Size of window | MM | 65x30-350x330mm |
| INCH | 2.56x2.56-12.99x12.99 | |
| Film thickness | MM | 0.05-0.20mm |
| Power Supply | KW | 15kw |
| Weight | KG | 3200kg |
| Overall Dimensions | MM | 7000x1600x1600mm |
| NO. | Goods Description | Quantity | Unit Price |
| 1 | XY800 Automatic Window Patching Machine | 1 SET |
XY800 Corner cutting Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box.gift box.napkin box.cosmetic box etc.It can also realize the function of the paper gluing,film patching,film cutting and paper collection before folding boxes.
The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
The optional structure: Window with intermittent slit
|
|

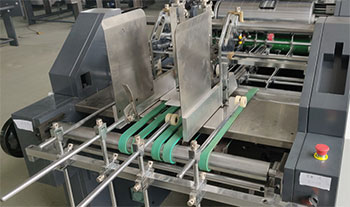

Paper Feeding Section The paper feeder parts is controller by the servo motor, the paper pile make the Perfect for the cardboard and corrugated |
|
|

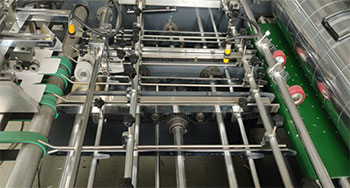

Conveying Section Double paper servo control The paper conveying parts installed the four conveying chains with the four |
|
|

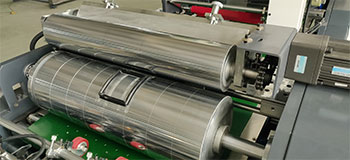

Gluing Section The gluing parts adopt the adjustable parts gluing structure , it is convenient for it is easy for pulling out the gluing parts ,convenient for washing. The gluing roller |
|

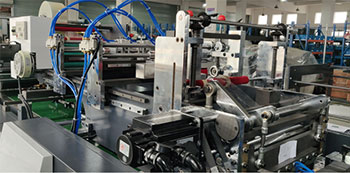

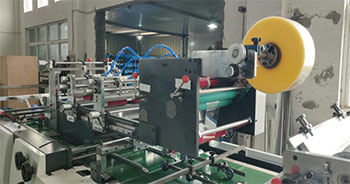

Creasing and punching Section Automatically Punching and creasing, position of the film can be The pressure of creasing can be adjusted for many different films. Feeding With front-lay positing to accurately position the paper. The precision up to±0.5mm |
|
|

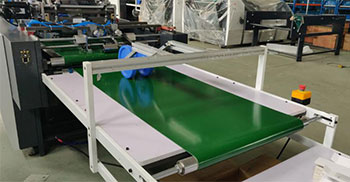

Paper collection section The patching products conveying to the paper delivery plate, finish the paper |
|
