Automatic paper Bag Stringing Machine

Automatic paper Bag Stringing Machine

Automatic paper Bag Stringing Machine can realize automatic bag conveying,non-stop bag adding,punching, plastic head wrapping,thread roping,bag counting,automatic alarming functions etc.
Automatic paper Bag Stringing Machine

Introduction

Automatic paper Bag Stringing Machine can realize automatic bag conveying,non-stop bag adding,punching, plastic head wrapping,thread roping,bag counting,automatic alarming functions etc.
It can adjust the sizes,height and hole distance of bags.The hole size can be applicable to the current market 3 strands rope,elastic string,ribbon products etc.It can adjust the length of rope which directly saves the cost and improves the efficiency.This machine combines the traditional rope wraps the plastic head way and threading rope organically.Automatic counting function makes the packaging more conveniently.

TECHNICAL

Model TCS-A TCS-B TCS-C
Bag Width 170-375mm 170-440mm 170-440mm
Bag Height 160-440mm 160-440mm 160-440mm
Weight of Paper 180-300g 180-300g 180-300g
Hole Distance 75-140mm 75-140mm 75-140mm
Thread Length 280-420mm 280-420mm 280-420mm
Speed 2150/Hour 2000/Hour 3200/Hour
Power 7.5KW 7.5KW 12KW
Weight 2T 2T 3T
Overall Dimension 3200*2500*2000mm 3200*2500*2000mm /

Remarks:

1.The rope is applicable for the general ropes such as three stranded rope,cotton rope and ribbon etc.
2.The hole distance should be less than the value which the bag width minus the thickness
3.The applicable bag should be that the value which bag height minus thickness greater than 80mm.
4.The height which is less than 170mm can be customized by manufacturer.

Sample

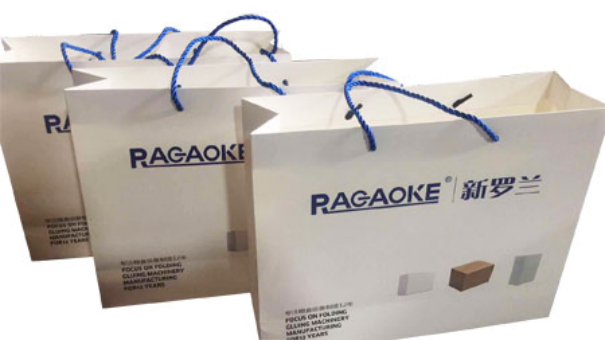

paper bag sample

paper bag sample
