GK-A Automatic folder gluer

GK-A Automatic folder gluer

GK-650A/GK-780A,Way of folding:Fold 1 and fold 3 are 180°.Over dimension:6.5x1.3x1.45m/6.5x1.45x1.45m;Packaging dimensions:3.65*1.3*1.45m/2.85*0.85*0.9m
GK-A Automatic folder gluer
GK-A Automatic folder gluer
GK-A Automatic folder gluer
GK-A Automatic folder gluer
GK-A Automatic folder gluer
Name GK-A Automatic Folder Gluer
model GK-650A GK-780A
Paper Material Cardboard210-800g
Max. Liner speed Max. 220 meter/minute
Feeding way Automatically and continuously feeding
Way of folding  Fold 1 and fold 3 are 180°,
Glue Material Water-base cold glue
Electric power 2.5kw   380v 2.5kw  380v
Weight 1.6T 1.8T
Over dimension 6.5x1.3x1.45m 6.5x1.45x1.45m
Packaging dimensions 3.65*1.3*1.45m 3.65*1.45*1.45m
2.85*0.85*0.9m 2.85*0.95*0.9m
Container 20GP 20GP
Net weight 1050kg 1220kg
350kg 470kg
Gross weight 1250kg 1420kg
420kg 530kg

Feature introduction

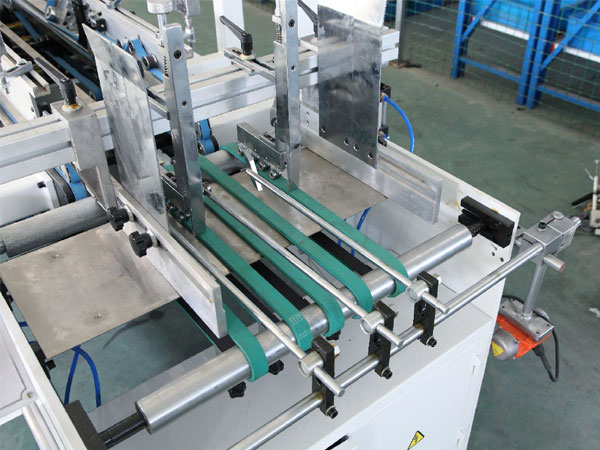

Feeding

5pcs Adjustable feeding belts to ensure easy adjustment,
stable and smoothly feeding

Continuously Variable Speeder to ensure feeding internal
and stable transmission

One-touch Pneumatic knife, easy for the adjustment of
feeding belts

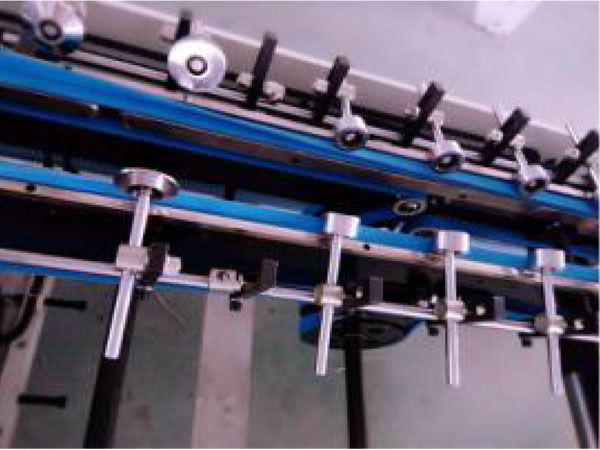

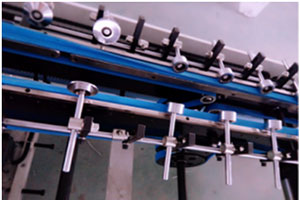

Folding

Lengthened folding to avoid the unevenness while the rapid forming
of cartons and make it come to perfection.



Folding

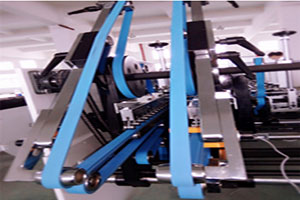

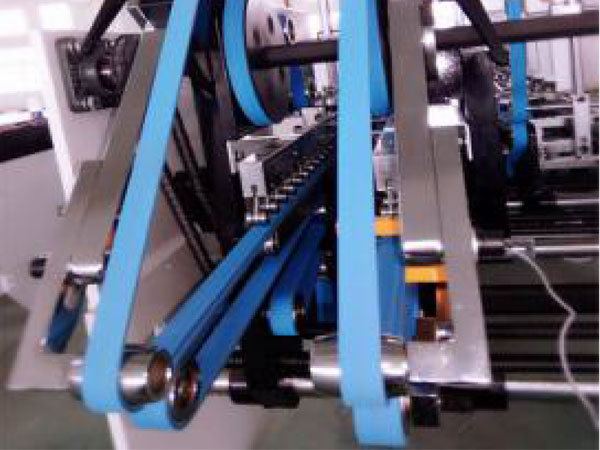

Full pressing

Full pressing

2-board structure

Two modes for pressing belt speeding:

Auto: set distance between boxes, pressing belt speed is the
same as the machine, belt removes while sensor detect it.

Manual: pressing belt conveys in a fixed speed and machine speed
will not put any effect on it.

With counting device to count the finished boxes to match with  boxes
regulating, easy to count and pack.



Transmission

Equipped with feeding paper inspection device.

Equipped with impacting device to press the paper
after accounting and make it easy to pack paper.



Transmission

Samples

Carton type and size:      plane figure
Model 650Type 780Type
A 75-650 75-780
B 60-650 60-780
C(Min) 35 35
