AS SERIES Automatic Folder Gluer

AS series box folding gluing machine machine is an air-moving pressure bed device for edge-straightening hook, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.

Get Price

Product information

Introduction

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons. (We can customize of other size).

AS TECHNICAL PARAMETERS

AS TECHNICAL PARAMETERS
MODEL	650	800	1100
Paper material	Cardboard 210-800gsm, E/N/F Flute
Max. speed	300m/min
Max .thickness of folded box	12mm	12mm	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	650mm	800mm	1100mm
Length x Width x Height	12x1.08x1.4m	12x1.23x1.4m	12x1.58x1.4m
Net Weight	4T	4.5T	5T
Total power	11.2kw	12.7kw	13.4kw

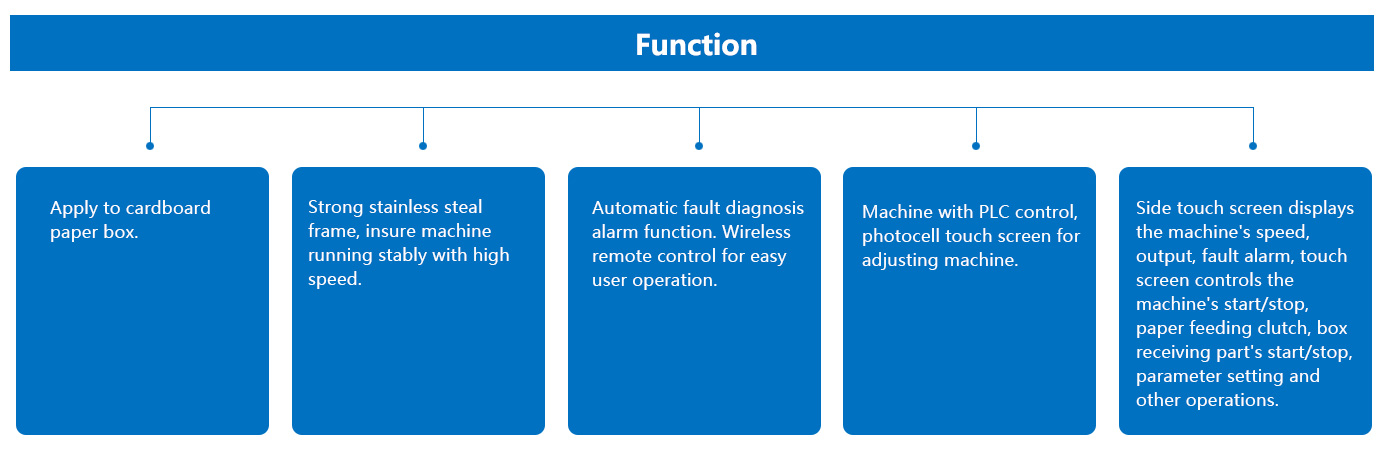

Function

Specification

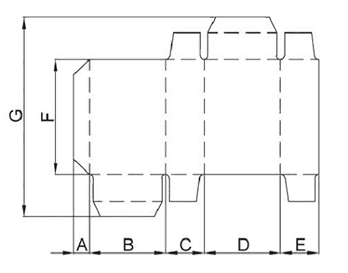

Straight Line Box Carton type and size:
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
B+C+D+E	130-650	130-800	130/280-1100
C+D（Min）	65	65	65/140
F	70-700	70-700	70-700
G(Max)	700	700	700
Pre-folding
D+E(Max)	300	300	300
G（Max）	400	400	400

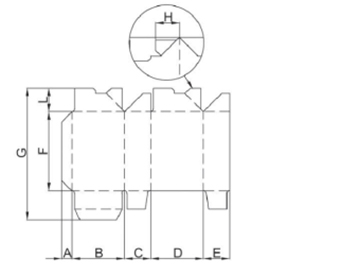

Crash Lock Bottom Box Carton type and size:
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
B+C+D+E	130-650	130-800	130/280-1100
C+D（Min）	65	65	65/140
F	70-700	70-700	70-700
G(Max)	700	700	700
H(Min)	25	25	25
L（Max）	30-100	30-100	30-100
