Introduction
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.
(We can customize of other size).
AS-C TECHNICAL PARAMETERS
|
AS-C TECHNICAL PARAMETERS |
|||
|
MODEL |
650 |
800 |
1100 |
|
Paper material |
Cardboard 210-800 gsm, E/N/F Flute |
||
|
Max. speed |
300m/min |
||
|
Max .thickness of folded box |
12mm |
12mm |
12mm |
|
Way of folding |
Fold 1 and fold 3 are 180°and 180°, fold 2 and fold 4 are 180° |
||
|
Power supply |
3P 380V 50HZ |
||
|
Blank width |
650mm |
800mm |
1100mm |
|
Length x Width x Height |
11.5x1.08x1.4m |
11.5x1.23x1.4m |
11.5x1.58x1.4m |
|
Net Weight |
3T |
3.5T |
4.5T |
|
Total power |
11.2kw |
12.7kw |
12.7kw |
|
|

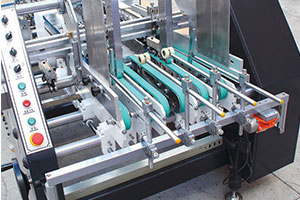

Paper Feeding Section 1.Six pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. 2.Continuously Variable Speeder to ensure feeding internal and stable transmission. 3.One-touch Pneumatic knife, easy for the adjustment of feeding belts. |
|
|

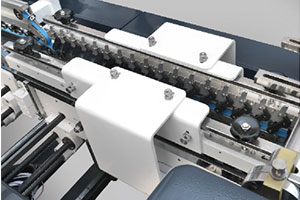

Aligner sectionion Equipped with auto-correction device to correct the obliquity and ensure the correct feeding |
|
|

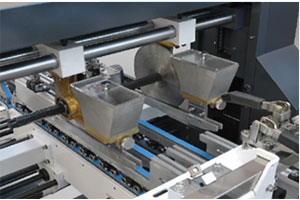

Crash lock bottom section 1.3 carriers tracking structure, upper glue can make bottom-locked box automatic gluing and forming. 2.The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box. |
|

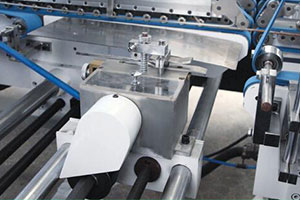

Lower gluing tank Equipped with 2 pcs lower gluing tank. |
|
|

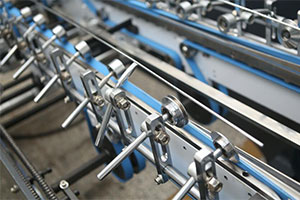

Folding and closing 1.The folding is equipped with the driving belt 2.Folding belts have corrective function 3.Extension work, make the box forming more stable. |
|
|

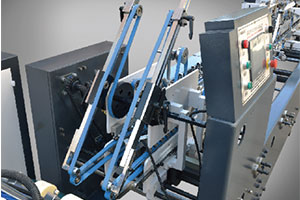

Trombone section 1.Adjust the pressure easily and reliably to ensure the gluing quality; 2.Equipped with pneumatic counting device which makes the counting conveniently. 3.The press is equipped with independent speeder. The operator can set the collecting speed |
|
|

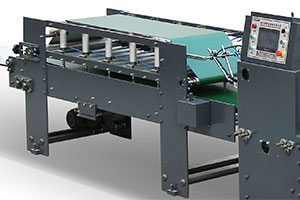

Transmission 1.Equipped with one-touch pneumatic pressure adjustment, easy operation. 2.It has two functions: |
|
Specification
|

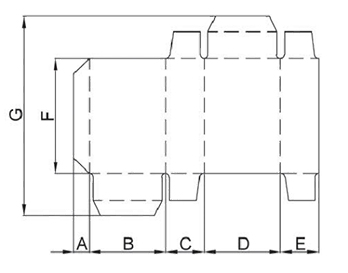

Straight Line Box Carton type and size: |
|
|||
|
Model |
650Type |
800Type |
1100Type |
|
|
Way of folding |
Two carriers |
Two carriers |
Two /three carriers |
|
|
B+C+D+E |
130-650 |
130-800 |
130/280-1100 |
|
|
C+D（Min） |
65 |
65 |
65/140 |
|
|
F |
70-700 |
70-700 |
70-700 |
|
|
G(Max) |
700 |
700 |
700 |
|
|
Pre-folding |
||||
|
D+E(Max) |
300 |
300 |
300 |
|
|
G（Max） |
400 |
400 |
400 |
|
|

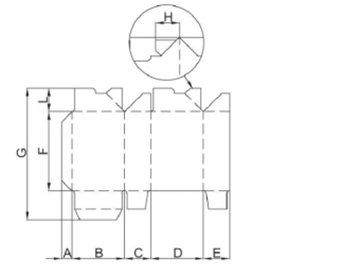

Crash Lock Bottom Box Carton type and size: |
|
|||
|
Model |
650Type |
800Type |
1100Type |
|
|
Way of folding |
Two carriers |
Two carriers |
Two /three carriers |
|
|
B+C+D+E |
130-650 |
130-800 |
130/280-1100 |
|
|
C+D（Min） |
65 |
65 |
65/140 |
|
|
F |
70-700 |
70-700 |
70-700 |
|
|
G(Max) |
700 |
700 |
700 |
|
|
H(Min) |
25 |
25 |
25 |
|
|
L（Max） |
30-100 |
30-100 |
30-100 |
|

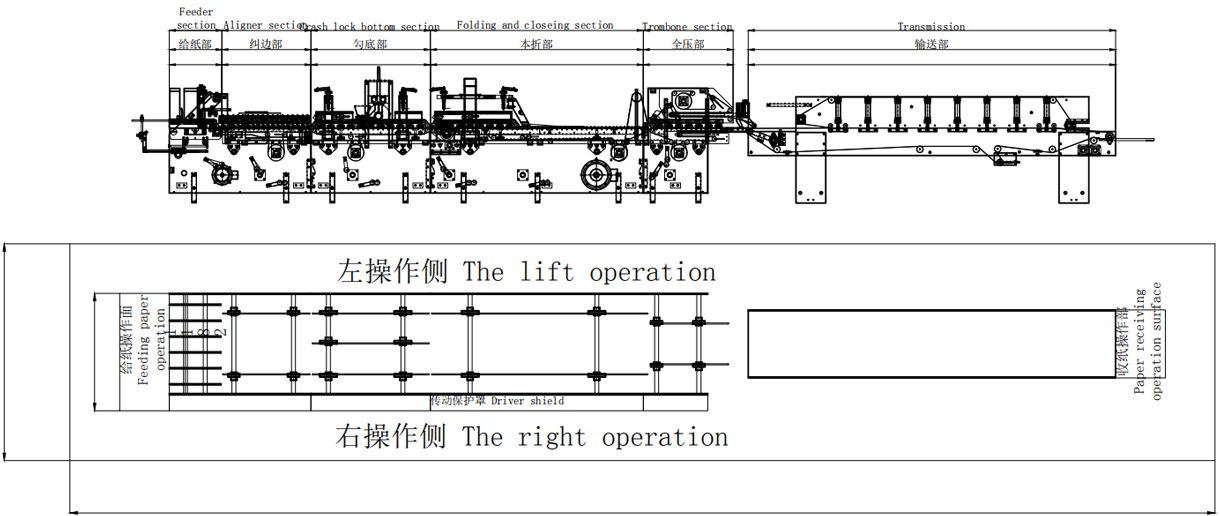

Foundation Drawing
