AS-B Automatic Pre-folding Folder Gluer

AS-B Automatic Pre-folding Folder Gluer

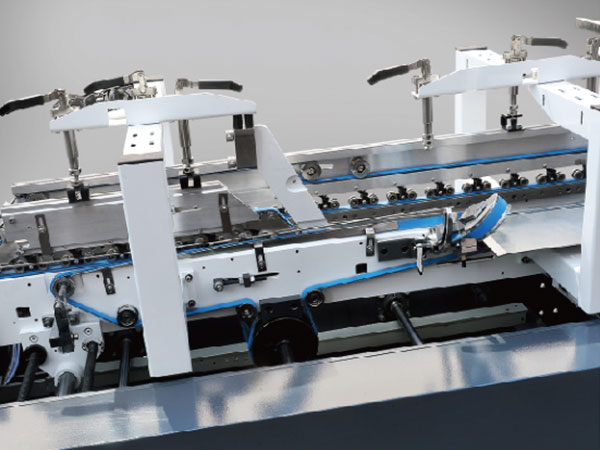

AS-B series box folding gluing machine is a pneumatic press type device for edge prefolding, adopts synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
AS-B Automatic Pre-folding Folder Gluer
AS-B Automatic Pre-folding Folder Gluer
AS-B Automatic Pre-folding Folder Gluer
AS-B Automatic Pre-folding Folder Gluer
AS-B Automatic Pre-folding Folder Gluer

AS-B Introduction

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of pre-fold boxes. Pre-folding can be applied to auto packaging, the fold 1 and fold 3 of the processed box can reach 180°and 135° perfectly combining the requirements of automatic packaging. (We can customize of other size).

AS-B TECHNICAL

AS-B TECHNICAL PARAMETERS

MODEL

650

800

1100

Paper material

Cardboard 210-800gsm, E/N/F Flute

Max. speed

260m/min

Max .thickness of folded box

12mm

12mm

12mm

Way of folding

Fold 1 and fold 3 are 180°and 135, fold 2 and fold 4 are 180°

Power supply

3P 380V 50HZ

Blank width

650mm

800mm

1100mm

Length x Width x Height

10x1.08x1.4m

10x1.23x1.4m

10x1.58x1.4m

Net Weight

2.5T

3T

3.5T

Total power

9.2kw

9.2kw

9.2kw

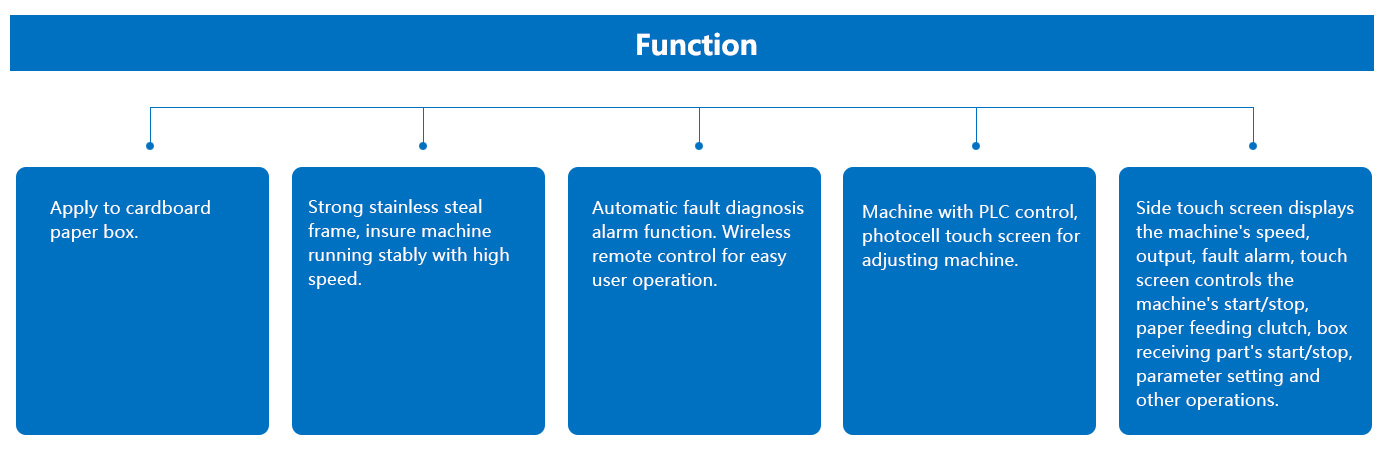

Function

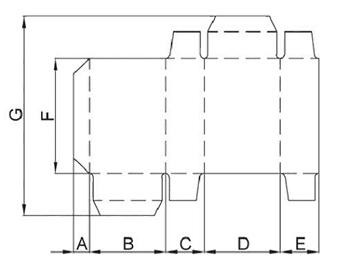

Straight Line Box Carton type and size:

 plane figure

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

B+C+D+E

130-650

130-800

130/280-1100

C+D(Min)

65

65

65/140

F

70-700

70-700

70-700

G(Max)

700

700

700

Prefolding

D+E(Max)

300

300

300

G(Max)

400

400

400

 (Final folding by one carrier:B+C+D+E minimun feeding width 75mm)
