PC SERIES Automatic High-Speed Folder Gluer

PC Automatic high speed folding gluing machine. Perfect solution to work in the heavy packaging industry.

Get Price

Product information

Introduction

Wide range of accessories that allows to different kinds of designs. Fast, steady and precise machine, easy to set up and operate.All sections with independent motor driving system.Motorized carrier movement with high precision linear guides.

Able to produce complex carton structures, straight line, lock bottom and so on.

TECHNICAL PARAMETERS
MODEL	1200	1450	1600
Paper material	Cardboard 210-800gsm, A/B/E Flute
Max Speed	260m/min
Max.thickness of folded box	12mm	12mm	12mm
Way of folding	fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	1200mm	1450mm	1600mm
Length x Width x Height	14x1.9x1.7m	14x2.2x1.7m	14x2.3x1.7m
Net Weight	8T	9T	10T
Total power	22.28kw	22.28kw	22.28kw

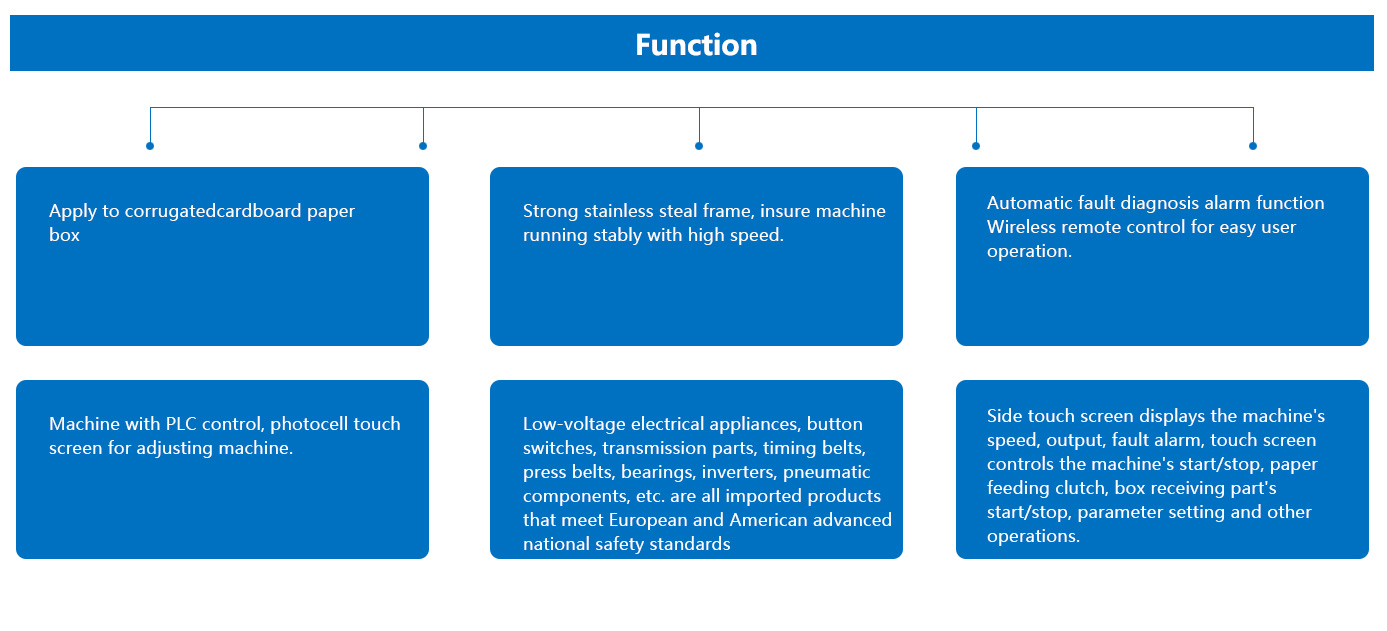

Function

Specification

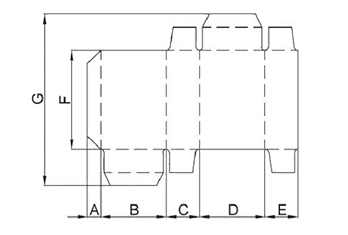

Straight Line Box Way of folding : Three carriers Carton type and size:
Model	1200Type	1450Type	1600Type
A+B+C+D+E	300-1200	350-1450	350-1600
F	70-900	70-900	70-900
D+E	140	170	170

(Final folding by one carrier:B+C+D+E minimum feeding width 75mm)

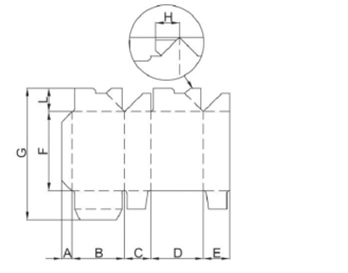

Crash Lock Bottom Box Way of folding: Three carriers Carton type and size:
Model	1200Type	1450Type	1600Type
A+B+C+D+E	300-1200	350-1450	350-1600
G	70-900	70-900	70-900
L	30-110	30-110	30-110
B+C（Min）	140	170	170
