Introduction

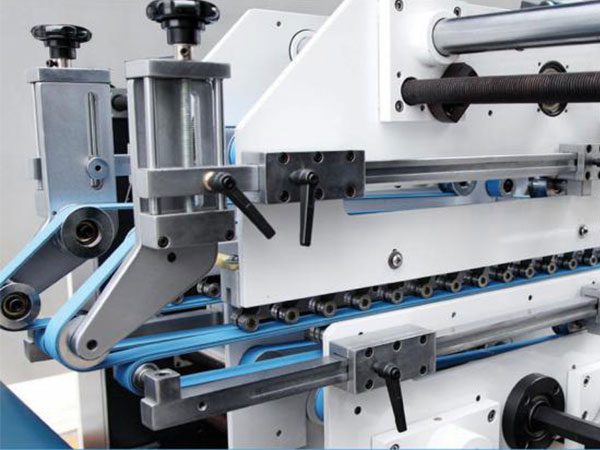

AC Automatic high speed folder gluer models focussed on multi-type work capabili-ties with medium-long to shorter run lengths in mind.
TECHNICAL PARAMETERS
|
AC TECHNICAL PARAMETERS |
|||
|
MODEL |
1200 |
1450 |
1600 |
|
Paper material |
Cardboard 210-800gsm, A/B/E Flute |
||
|
Max Speed |
260m/min |
||
|
Max.thickness of folded box |
12mm |
12mm |
12mm |
|
Way of folding |
fold 2 and fold 4 are 180° |
||
|
Power supply |
3P 380V 50HZ |
||
|
Blank width |
1200mm |
1450mm |
1600mm |
|
Length x Width x Height |
13.5x1.85x1.6m |
13.5x2.15x1.6m |
13.5x2.4x1.6m |
|
Net Weight |
7T |
8T |
9T |
|
Total power |
14.5kw |
19.5kw |
19.5kw |
| Straight Line Box Way of folding Three carriers |
|
|||
|
Model |
1200Type |
1450Type |
1600Type |
|
|
A+B+C+D+E |
300-1200 |
350-1450 |
350-1600 |
|
|
F |
70-900 |
70-900 |
70-900 |
|
|
D+E |
140 |
170 |
170 |
|
|
Crash Lock Bottom Box Way of folding Three carriers |
|
|||
|
Model |
1200Type |
1450Type |
1600Type |
|
|
A+B+C+D+E |
300-1200 |
350-1450 |
350-1600 |
|
|
G |
70-900 |
70-900 |
70-900 |
|
|
L |
30-110 |
30-110 |
30-110 |
|
|
B+C（Min） |
140 |
170 |
170 |
|
