AC Parameters
| Name | GK-AC Automatic High-speed gluing folding machine | ||
| model | GK-1200AC | GK-1450AC | GK-1600AC |
| Paper Material | Cardboard 210-800g A/B/E Corrugated | ||
| Max. Liner speed | Max. 260 meter/minute | ||
| Feeding way | Automatically and continuously feeding | ||
| Way of folding | Fold 2 and fold 4 are 180° | ||
| Glue Material | Water-base cold glue | ||
| Power Supply | 3P380V50HZ | ||
| Total power | 12kw | 14kw | 14kw |
| Weight | 8T | 9T | 10T |
| Over dimension | 13.5x1.85x1.6m | 13.5x2.1x1.6m | 15x2.3x1.6m |
AC Features introduction
|
|
Paper Feeding Section Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and |
|
|
Aligner section The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness. |
|

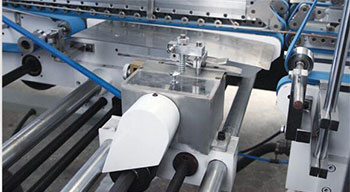

Lower gluing tank Equipped with the lower gluing tank. |
|
|
Folding and closing The folding is equipped with the driving belt, folding belts have corrective function, |
|
|
Trombone section Independent motor drive can be used to control the adjustable size of the belt. Paper collection adopts cylinder pressure system, easier to adjust pressure, make |
|
|

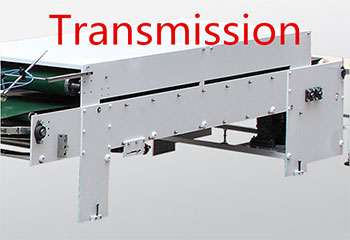

Transmission Press: Equipped with one-touch pneumatic pressure adjustment, easy operation. Press has two functions: 1.waiting, when feeding is paused, press will auto enter into waiting state 2.Travel switch, pause the machine in case of wrong collecting |
|
| Straight-line box |  |
|||
| Model | 1200Type | 1450Type | 1600Type | |
| A | 250-1200 | 300-1450 | 300-1600 | |
| B | 80-700 | 80-1000 | 80-1000 | |
| C(Min) | 120 | 120 | 120 |
