Accessaries

4 Channels System

4 Channels System

KQ cold glue system has the characteristics of high efficiency, flexibility, good stability and easy maintenance
4 Channels System
4 Channels System
4 Channels System
4 Channels System

KQ cold glue system has the characteristics of high efficiency, flexibility, good stability and easy maintenance

Application Field

The best partner of folder gluer,folding machine and corrugated box machine,is important for carton boxes,four or six corner boxes,hamgurger boxes,folding,file bags,introductions,envelops and other paper products.

Application Field

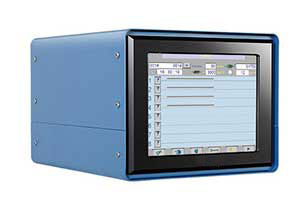

High efficiency controller High efficiency controller
Modular control and monitor function,fully visualized
operation through a central touch screen for flexible
to ensure straightforward operation.
Model HZ4
Input Voltage 220VAC(±20%)50-60HZ
Power 480W
Glue Precision ±1mm
Size 280*233*183mm
Spray Head Quantity Optional,up to 4
Photocell Quantity Optional,up to 4
Weight 7.8kg

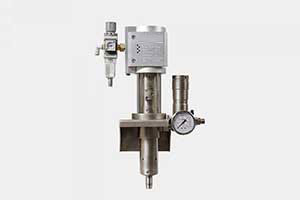

Application of pisto pump Application of pisto pump
1:6 high pressure pisto pump transfer information
with controller.Equipped with automatic voltage
regulator to ensure the glue in the same size.
Model HB6
Maximum Viscosity of glue 3000mPas
Transport Efficiency per Two-pass 80cm3
Input Air pressure 6:1
Weight 12.5kg
Size 485*225*150

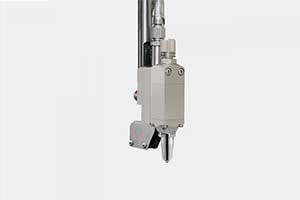

Cost Contral Cost Contral
Precision in ± mm at the speed of 300m/min
Model PJ-4000
Size 51.5*25*127
Maximum Air Pressure 32bar
Maximun Frquency 500Hz
